Post-Installation Hermetic Sealing of Oil Transformers
GATRON´s Breathing Buffer Box G3B
(Sale by Elektromotorenwerk Barleben)

Advantages:
  • service-free sealing system
    • oxygen reduction in the transformer
    • protection from outside moisture entry
  • support of gas accumulation function of the BR
  • multiple-box system for various oil volumes and working temperatures
  • for existing and new transformers
  • also usable for OLTC
Extensions:
  • monitoring of oxygen, moisture and hydrogen in the gas room
  • active drying in the gas room
  • nitrogen feeding during resaturation

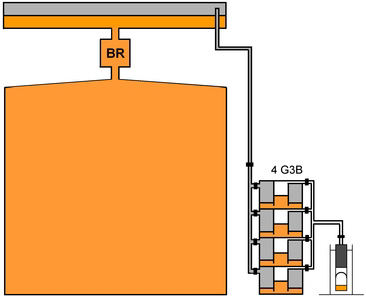

Breathing Buffer Box G3B

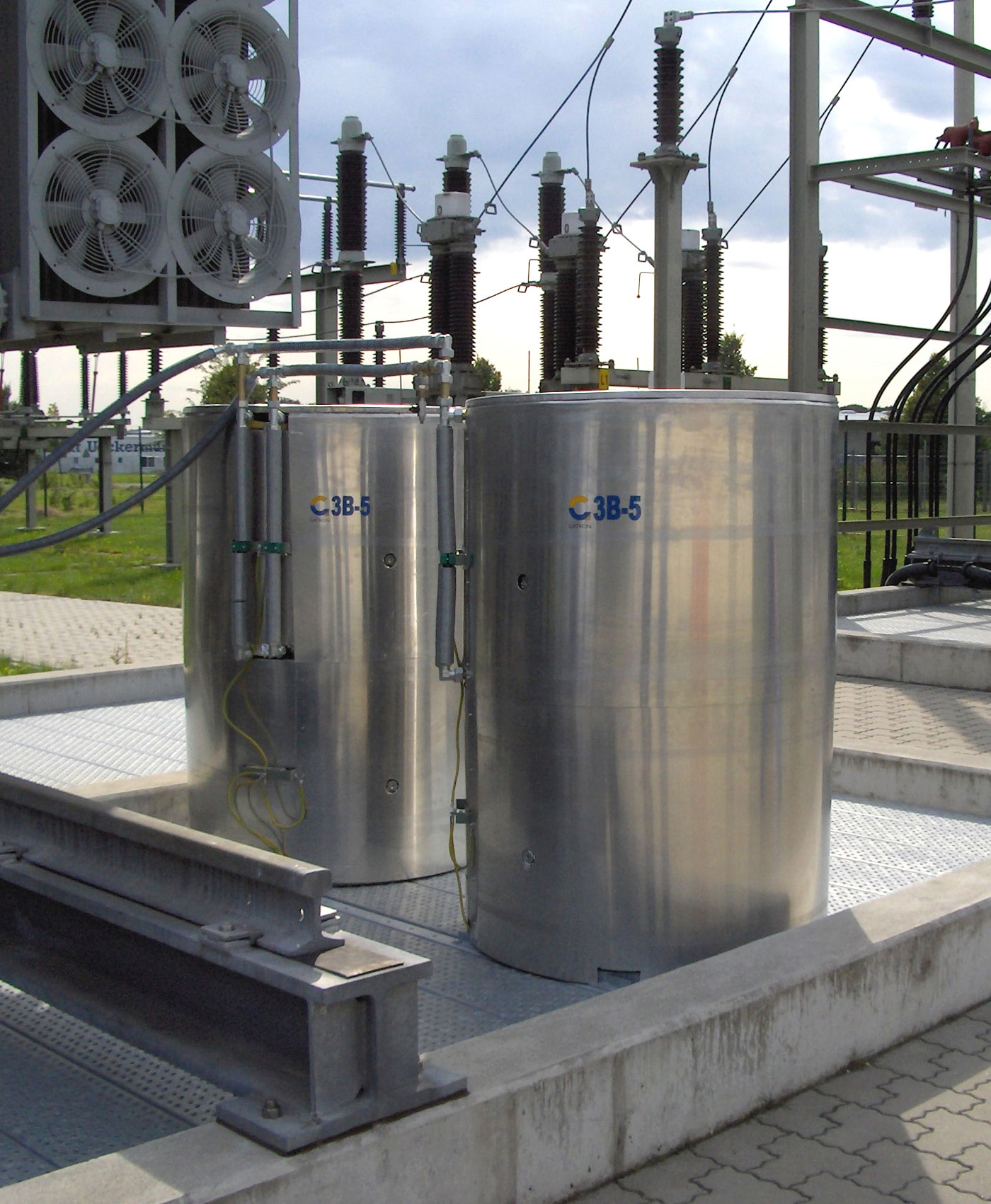

Prototype of G3B installation
Prototype of G3B installation Status: August 2009
Technical modifications reserved
